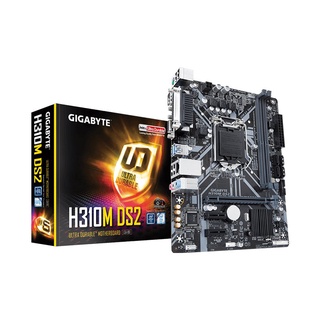

Mainboard GIGABYTE H310M-DS2 (Intel H310, Socket 1151, m-ATX, 2 khe RAM DDR4) - Đã Qua Sử Dụng

Giới thiệu Mainboard GIGABYTE H310M-DS2 (Intel H310, Socket 1151, m-ATX, 2 khe RAM DDR4) - Đã Qua Sử Dụng

Tên gọi: Gigabyte H310M-DS2
CPU hỗ trợ: Intel® Socket 1151 for 8th Generation Core™ Processors
Chipset / Socket: Intel® H310
Bộ nhớ (RAM):
• 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2400/ 2133 MHz (by JEDEC)1
• Supports DDR4 2400/ 2133 (by XMP OC)1
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng:
• 1 x PCI Express 3.0 x16 Slots• 2 x PCI Express 3.0 x1 Slots
LAN / Wireless:
• Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh:
• Realtek® ALC887 Codec
Cổng kết nối (Internal):
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
Cổng kết nối (Back Panel):
• 1 x PS/2 keyboard/mouse port
• 1 x parallel port
• 1 x serial port
• 1 x D-Sub port
• 2 x USB 3.1 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
Công nghệ độc quyền:
• Support for APP Center
• Support for Q-Flash
• Support for Xpress Install
Phụ kiện đi kèm:
- Quick Installation Guide, Support CD, I/O Shield
Hệ điều hành khuyến nghị:
• Windows® 10 64-bit
Chuẩn kích cỡ:
• mATX Form Factor
