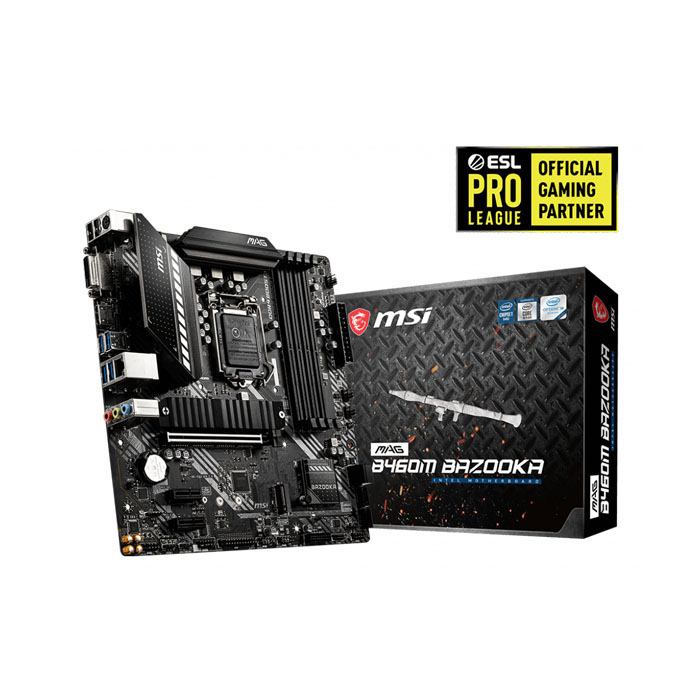

Giới thiệu Bo Mạch Chủ MSI MAG B460M BAZOOKA - Hàng Chính Hãng
CPU
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Please go to intel.com for compatibility information
- Onboard graphics output are disabled when using the F SKU processors.
CHIPSET
Intel B460 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB
- Intel Core i7/i9
- Support DDR4-2933 Memory (Max.)
- Intel Core i5 (Below)
- Supports DDR4-2666 Memory (Max.)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe 3.0 x16 slot (from CPU)
- 2x PCIe x1 slots (from PCH)
ONBOARD GRAPHICS
- 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
- 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
STORAGE
Intel B460 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready
- Supports Intel Smart Response Technology for Intel Core processors
- SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel B460 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel B460 Chipset
- 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO
Realtek ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek RTL8111H Gigabit LAN Controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water pump connector
- 2x 4-pin system fan connectors
- 1x front panel audio connector
- 2x system panel connectors
- 1x parallel port connector
- 1x serial port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
BACK PANEL PORTS
- PS/2 Combo Port
- Gigabit LAN
- USB 2.0 Ports
- DVI-D
- HDMI Port
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- HD Audio Connectors
LED FEATURES
I/O CONTROLLER
NUVOTON NCT6687 Controller Chip
HARDWARE MONITOR
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
FORM FACTOR
- mATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES
- 1x 128 Mb flash
- UEFI AMI BIOS
- ACPI 6.2, SM BIOS 3.2
- Multi-language
