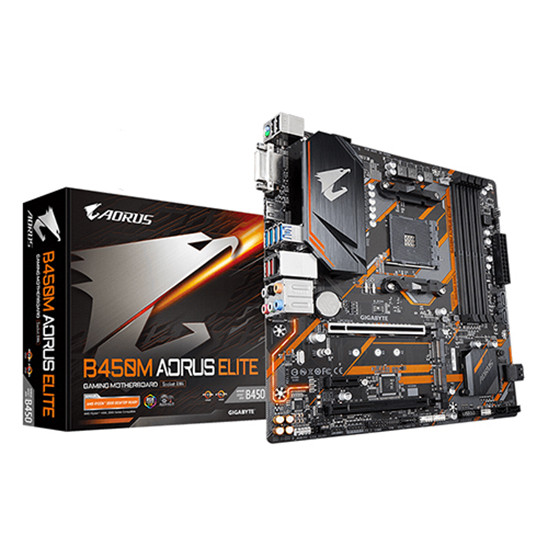

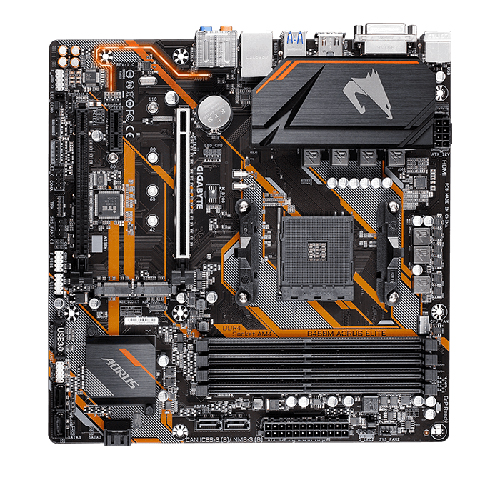

Bo Mạch Chủ Mainboard Gigabyte B450M Aorus Elite - Hàng Chính Hãng

Hãng: Gigabyte | Xem thêm các sản phẩm Mainboard - Board mạch chủ của Gigabyte
THÔNG SỐ KỸ THUẬT CPUAMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryze...
Còn ít hoặc hết hàng
2,290,000 đ
Kiểm tra còn hàng
Công ty:CIVIP TechnologyXem thêm các sản phẩm Mainboard - Board mạch chủ bởi CIVIP Technology
  • Giao hàng toàn quốc
  • Được kiểm tra hàng
  • Thanh toán khi nhận hàng
  • Chất lượng, Uy tín
  • 7 ngày đổi trả dễ dàng
  • Hỗ trợ xuất hóa đơn đỏ
Giới thiệuchi tiết

Giới thiệu Bo Mạch Chủ Mainboard Gigabyte B450M Aorus Elite - Hàng Chính Hãng

THÔNG SỐ KỸ THUẬT
  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B450
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Maximum shared memory of 16 GB

    (Note) Actual support may vary by CPU.
  • Audio
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (Note) Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • Storage Interface Integrated in the CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
    2. 2 x SATA 6Gb/s connectors (ASATA3 1/2)
    Integrated in the Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET)
    2. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
    Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • USB Integrated in the CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
    Integrated in the Chipset:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.1 Gen 1 ports available through the internal USB headers
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 2 x M.2 Socket 3 connectors
    6. 6 x SATA 6Gb/s connectors
    7. 2 x addressable LED strip headers
    8. 2 x addressable LED strip power select jumpers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 1 x RGB (RGBW) LED strip header
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 1 x USB 3.1 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x serial port header
    18. 1 x speaker header
    19. 1 x Clear CMOS jumper
    20. 1 x chassis intrusion header

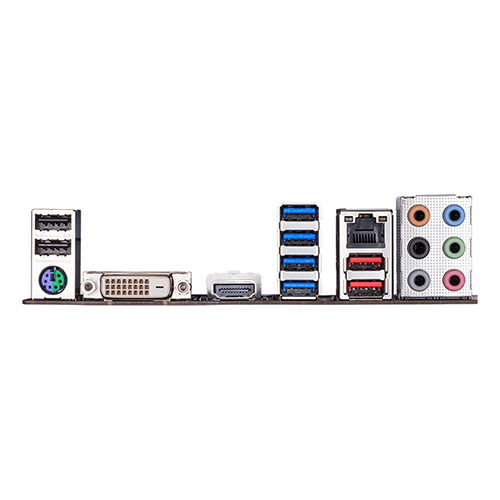

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x USB 2.0/1.1 ports
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 4 x USB 3.1 Gen 1 ports
    6. 1 x RJ-45 port
    7. 2 x USB 3.1 Gen 2 Type-A ports (red)
    8. 6 x audio jacks
  • I/O Controller
    1. iTE I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton Internet Security (OEM version)
    2. Realtek 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Tuy nhiên tuỳ vào từng loại sản phẩm hoặc phương thức, địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, .....


Giá TRDC
Xem thêm thông tin sản phẩm

Thông tin chi tiết

Thương hiệuGigabyte
Xuất xứ thương hiệuTaiwan
Xuất xứTaiwan
SKU5102474764510
