Bo Mạch Chủ Mainboard GIGABYTE B365M D3H - LGA1151 - Hàng Chính Hãng

Hãng: Gigabyte | Xem thêm các sản phẩm Mainboard - Board mạch chủ của Gigabyte
Ultra Durable Bo Mạch Chủ Mainboard GIGABYTE B365M D3H - LGA1151 - Các bộ phận của GIGABYTE B365M-DS3H đều được gia công cẩn thận với linh kiện cao cấp nhằm đảm bảo đem lại tính ổn định và tuổi thọ...
  • Giao hàng toàn quốc
  • Được kiểm tra hàng
  • Thanh toán khi nhận hàng
  • Chất lượng, Uy tín
  • 7 ngày đổi trả dễ dàng
  • Hỗ trợ xuất hóa đơn đỏ

Giới thiệu Bo Mạch Chủ Mainboard GIGABYTE B365M D3H - LGA1151 - Hàng Chính Hãng

CPU
  1. Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) Chipset Intel B365 Express Chipset Bộ nhớ
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.

(Please refer "Memory Support List" for more information.)

Card đồ họa tích hợp Integrated Graphics Processor-Intel HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  3. * The DVI-D port does not support D-Sub connection by adapter.
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
  5. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU Âm thanh
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel GbE LAN chip (10/100/1000 Mbit) Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x PCI slot
  5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Công nghệ đa card đồ họa Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Giao diện lưu trữ Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready USB Chipset:
  1. 1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
  2. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 6 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x parallel port header
  16. 1 x Clear CMOS jumper

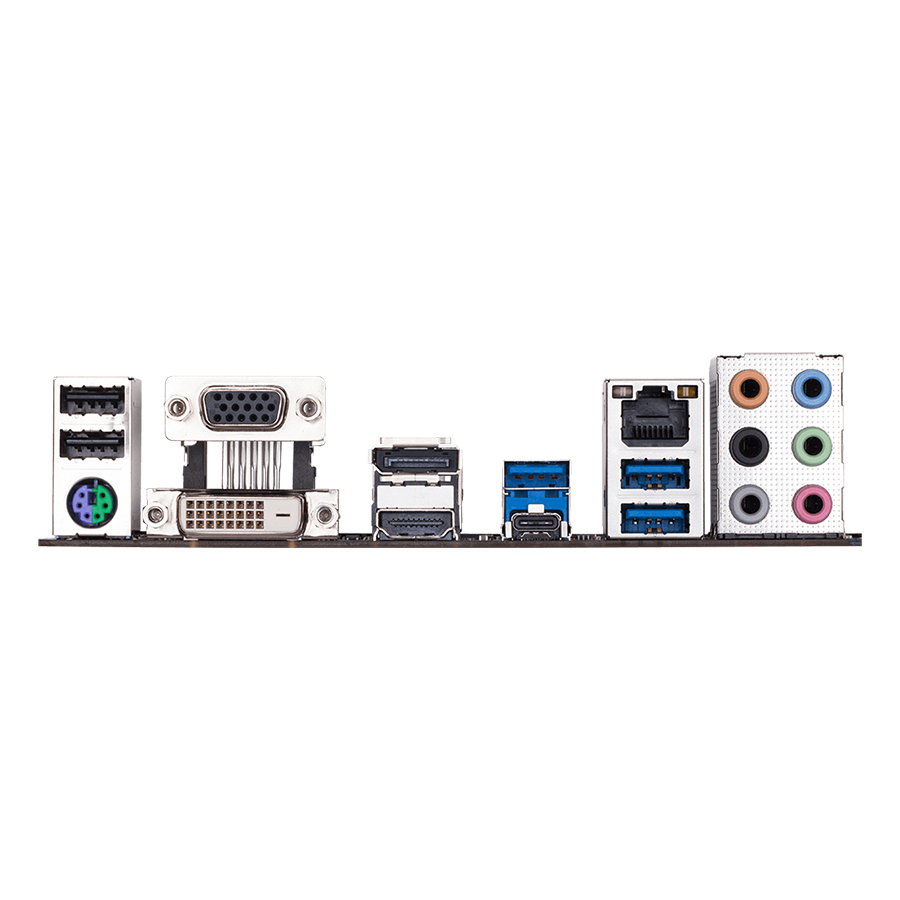

Kết nối bảng phía sau
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x DisplayPort
  5. 1 x HDMI port
  6. 1 x USB Type-C port, with USB 3.1 Gen 1 support
  7. 3 x USB 3.1 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks
Điều khiển I/O iTE I/O Controller Chip Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
  1. upport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
Hệ điều hành Support for Windows 10 64-bit Hệ số khuôn Micro ATX Form Factor; 24.4cm x 23.0cm

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Tuy nhiên tuỳ vào từng loại sản phẩm hoặc phương thức, địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, ...

Thông tin chi tiết

Thương hiệuGigabyte
Xuất xứTrung Quốc
Quy cách đóng góiHộp
SKU1380517645277
