CPU | - Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
Chipset | Intel Z390 Express Chipset |
Bộ nhớ | - 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed. - Dual channel memory architecture
- Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
Card đồ họa tích hợp | - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU. |
Âm thanh | - Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN | Intel GbE LAN chip (10/100/1000 Mbit) |
Khe cắm mở rộng | - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.) - 1 x M.2 Socket 1 connector for an Intel CNVi (CNVI)
|
Công nghệ đa card đồ họa | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Giao diện lưu trữ | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready |
USB | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
Kết nối I/O bên trong | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (SPI_TPM) header
- 1 x Thunderbolt add-in card connector
- 1 x serial port header
- 1 x Clear CMOS jumper
|

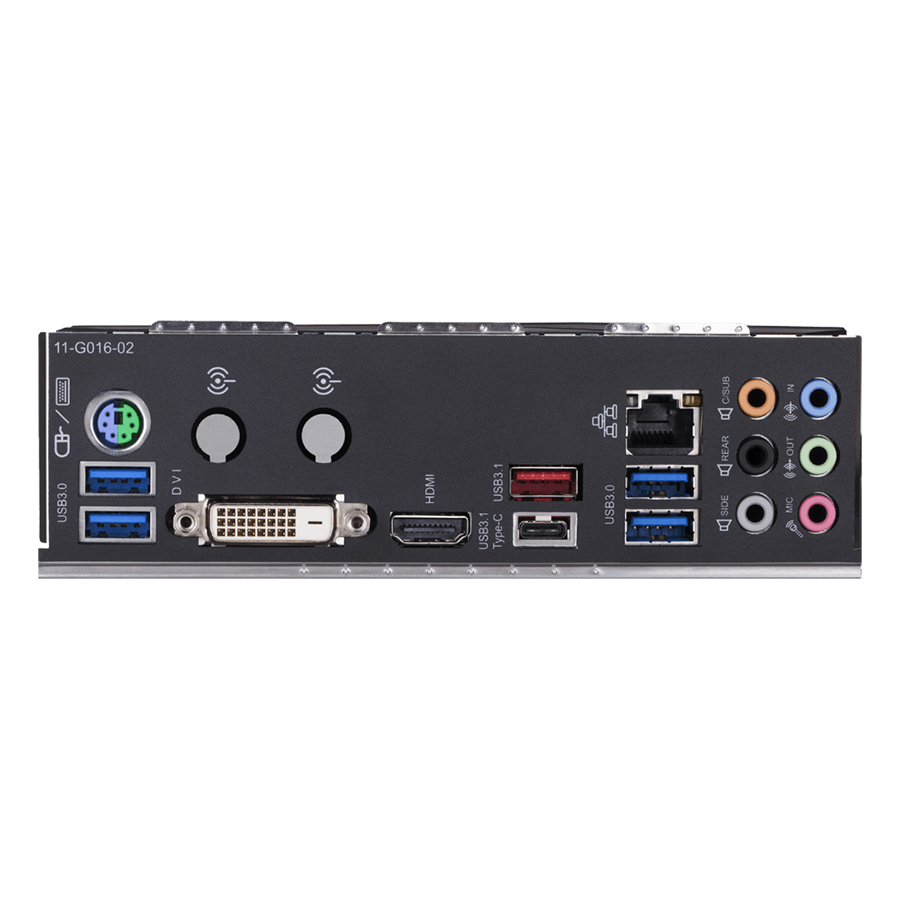

Kết nối bảng phía sau | - 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI ports
- 1 x USB Type-C port, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 4 x USB 3.1 Gen 1 ports
- 1 x RJ-45 port
- 6 x audio jacks
|
Điều khiển I/O | iTE I/O Controller Chip |
Theo dõi phần cứng | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control *Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS | - 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Tính năng duy nhất | - Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner - Support for Q-Flash
- Support for Xpress Install
|
Gói phần mềm | - Norton Internet Security (OEM version)
- cFosSpeed
|
Hệ điều hành | Support for Windows 10 64-bit |
Hệ số khuôn | Micro ATX Form Factor; 24.4cm x 24.4cm |
